Instructions
Notes
- Hinge made from 13ga steel or similar material.
- Multiple extension plates may be added to increase offset distance if needed. Extension plate as drawn has a 3¾” offset, extension plates of varying lengths could be produced and used interchangeably.
- Hinge leaf “A” can be attached directly to hinge leaf “A” with or without an extension plate if a standard hinge setup is desired.
A

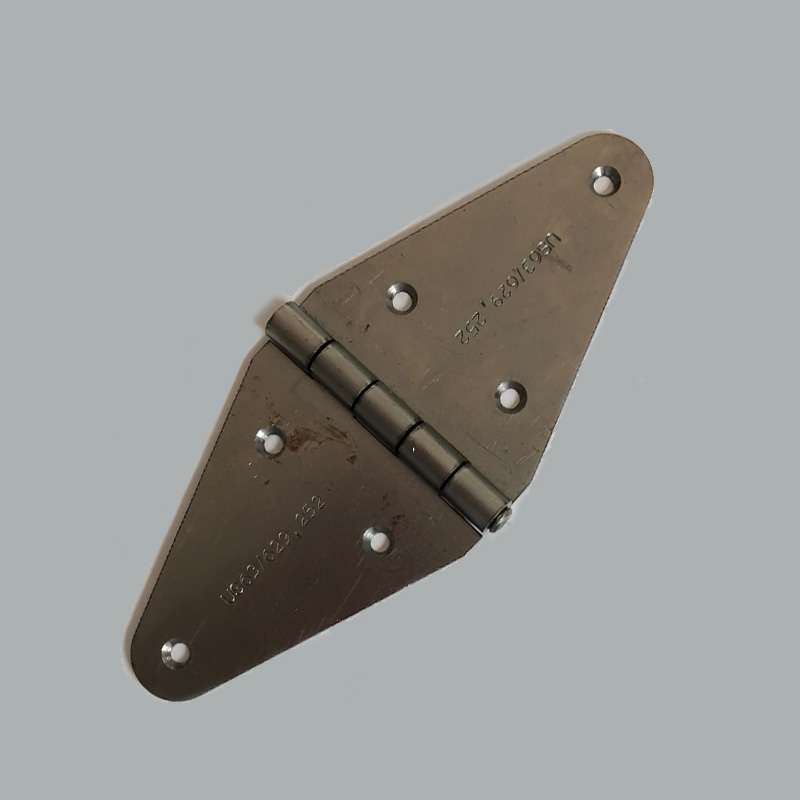

The setback henge is a multiply purpose henge with 2 A’s creates different sizes and shapes. Putting the 2 A’s with one pin together creates a 7″ henge.
B

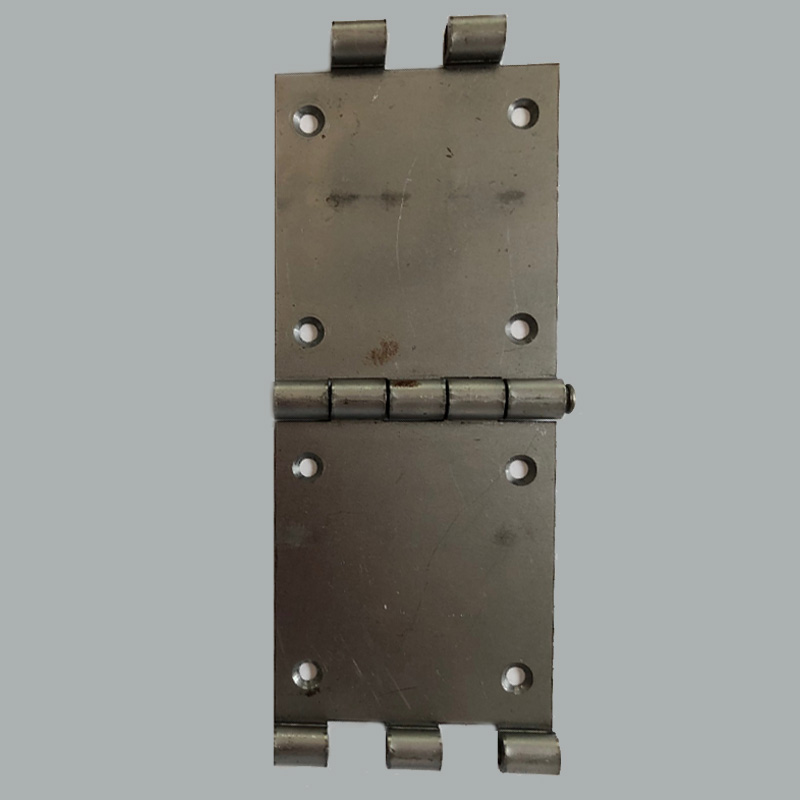

The setback henge extension plate. This henge is a multiply purpose henge with B plates. The pin is removable, the extension plates can become their own henge 8″ henge.
• All holes are reset
A & B

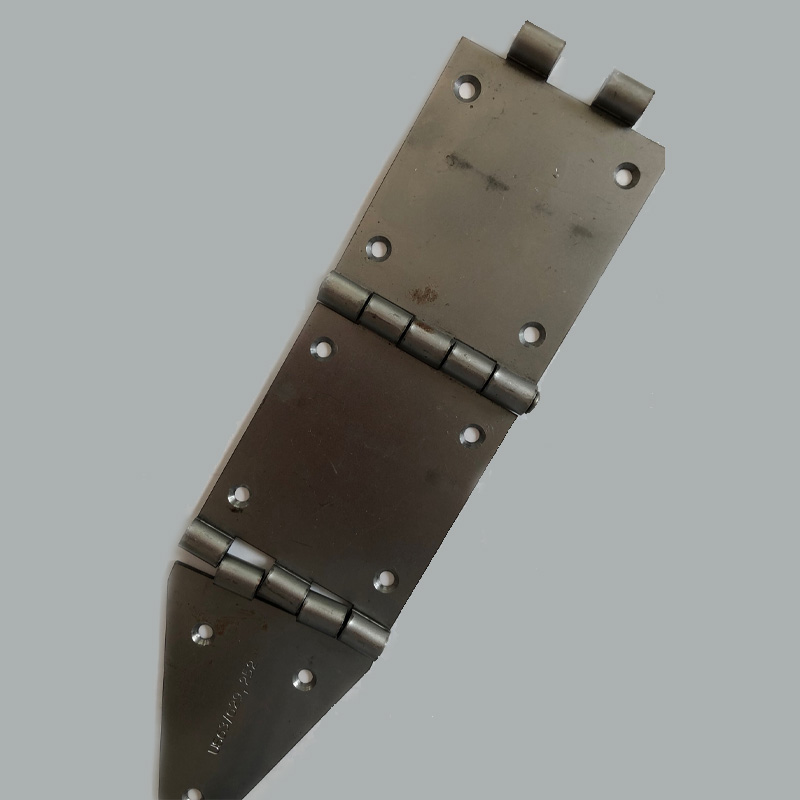

This setup creates 15″ Henge Using both A and B plates, the ability to use setback Henge in different positions.
As the user you can choose the various ways depending on your project. All pins are removeable.
B
As the user you can choose the various ways depending on your project.
Using both extension B plates and one A gives you a 11″ henge.
The Setback Henge is custom-made.
If you would like to order yours, please go to order below and let us know how many you would like to have.
